The Merge tool allows you to combine two or more booths into one larger booth. There are two types of merge functionality: Basic Merge and Advanced Merge.
- Basic Merge allows you to combine two or more booths to create a standard square or rectangular booth.
- Advanced Merged allows you to combine two or more booths to create a non-standard shape.
(e.g., angled sides, L booths, U booths, or booths with more or less than 4 sides.)
Jump to a topic:
- Video Tutorial
- Next Gen Floorplan Guide
- Classic Floorplan Guide
Video Tutorial
Basic Merge
Advanced Merge Video Demonstration
Next Gen Floorplan Guides
Basic Merge

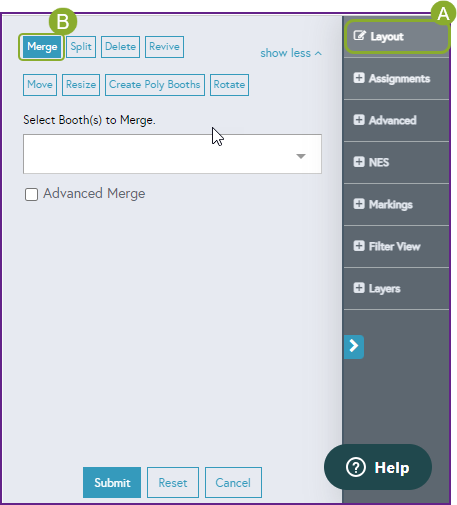

1. Navigate to your floorplan, then click Layout > Merge from the right functional bar.
2. Specify the booth numbers to be merged:
There are three methods to specify which booths you wish to merge:
-

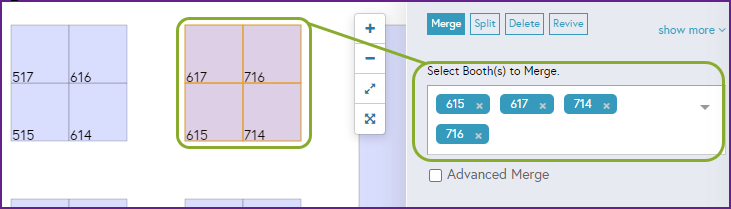

Method 1: Click each booth you would like to merge or select a range by clicking the opposite corners of the first and last booth of the range. Clicking the opposite corners automatically selects the booths in between.
-
Method 2: Select a range of booths from the Select Booth(s) to Delete dropdown list. Alternatively, type the individual booth numbers in the range and press the Enter key to select each. Typing opposite corners automatically selects all booths in between.
-
Method 3: Hold down the Shift Key, click on an outside corner, drag your mouse to select the desired range, and release to end selection.
You do not have to include the entire booth when dragging your mouse to create a selection. Partially highlighted booths in the selected area will be included in the merge selection.

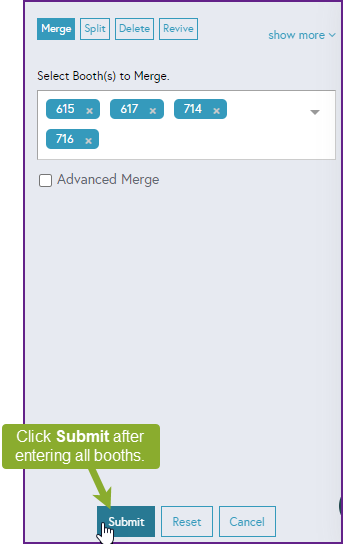

3. Click Submit to create the merged booth space.
TIP - The Reset button clears out your selection, and allows you to restart your selection process.

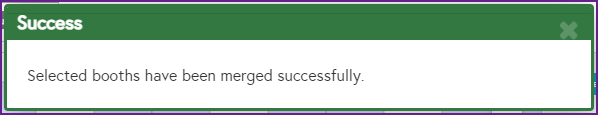

If successful, a green Success alert appears and confirms your booths are now merged.
Booths located in a Non-Exhibiting Space (NES), or that are assigned or reserved for a company cannot be merged.

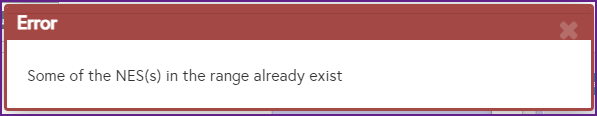

NES in range alert:
Booths in the range are assigned or reserved alert:
Advanced Merge

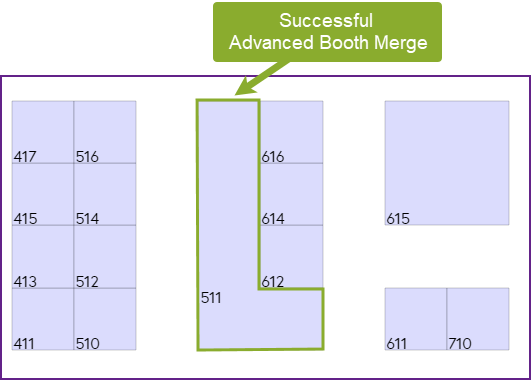

The Advanced Merge functionality helps you create non-rectangular booths - 'L', 'C', or even 'U' shaped booth spaces - using the existing booths on the floor plan. To create other types of advanced booth shapes, use Move, Rotate, or Create PolyBooths.
Please contact the Support Services Team for assistance if you require more complex booth shapes.

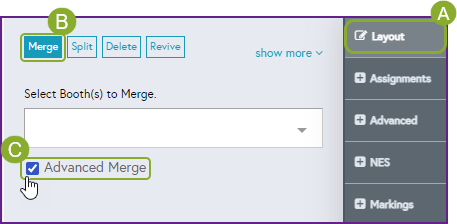

1. Navigate to your floorplan, click Layout > Merge from the right functional bar, then click the Advanced Merge checkbox.
2. Specify the booths to be merged by either clicking on each booth individually or by typing each booth number and pressing Enter to select the range from the Select Booth(s) to Merge dropdown list.
3. Click Submit to merge the selected booths together.
If successful, a green Success alert appears and confirms your booths are now merged.

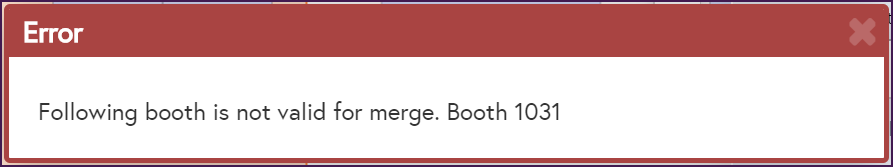

A red Error alert appears if the action is unsuccessful and the selected booths are unable to be merged.
Booths located in a Non-Exhibiting Space (NES), or that are assigned or reserved for a company cannot be merged.
NES in range alert:
Booths in the range are assigned or reserved alert:
Classic Floorplan Guide
Basic Merge
If you are using the Classic Floorplan, the Merge tool is located on the functional menu at the top of the map. Use this tool to create a standard square or rectangular booth.
- Choose Layout>Merge
- Click the top left and bottom right booth in the range that you want to combine to select them.
- Click Submit.
Advanced Merge

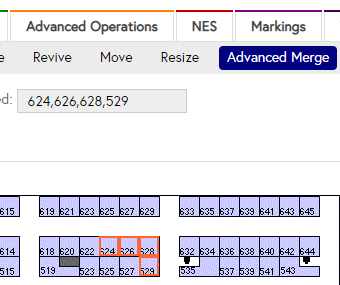

1. Under the Layout tab, select Advanced Merge.
2. Select each booth to be merged by clicking on each one, until you have selected and highlighted all of the booths you would like to merge.
3. Click Submit and check for the best placement for the label.
IMPORTANT: Select the new label area by clicking on the top left and bottom right of the area where you want the label to appear.
Click the Top Left and Bottom Right of the Area you want the label to appear.
If you are attempting to create a shape that the Advance Merge will not allow, please click the Help button in the bottom right corner to have the booth added to your floorplan.
